COMP 303 - Lecture Notes for Week 4 - Interfaces and Polymorphism

• Slides edited from, Object-Oriented Design Patterns, by Cay S. Horstmann
• Original slides available from: http://www.horstmann.com/design_and_patterns.html
• Modifications made by Laurie Hendren, McGill University
• Topics this week:
  • Interfaces and Polymorphism, Chapter 4
  • Using ant for project builds and maintenance

Chapter Topics

• Displaying an Image

• Polymorphism

• Drawing Shapes
• The Comparable Interface
• The Comparator Interface
• Anonymous Classes
• Frames and User Interface Components
• User Interface Actions

• Timers

• Designing an Interface

Displaying an Image

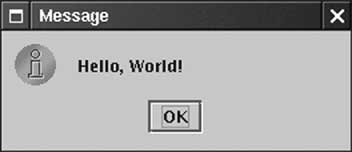

• Use JOptionPane to display message:


  JOptionPane.showMessageDialog(null, "Hello, World!");


• Note icon to the left

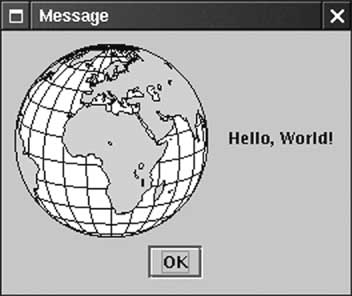

Displaying an Image

• Can specify arbitrary image file


  JOptionPane.showMessageDialog(
     null,
     "Hello, World!",
     "Message",
     JOptionPane.INFORMATION_MESSAGE,
     new ImageIcon("globe.gif"));


Displaying an Image

• What if we don't want to generate an image file?
• Fortunately, can use any class that implements Icon interface type

• ImageIcon is one such class
• Easy to supply your own class

The Icon Interface Type

public interface Icon
{
   int getIconWidth();
   int getIconHeight();
   void paintIcon(Component c, Graphics g, int x, int y)
}

Interface Types

• No implementation
• Implementing class must supply implementation of all methods

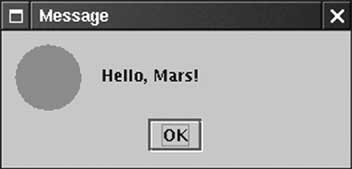

• Ch4/icon2/MarsIcon.java
• showMessageDialog expects Icon object
• Ok to pass MarsIcon
• Ch4/icon2/IconTest.java

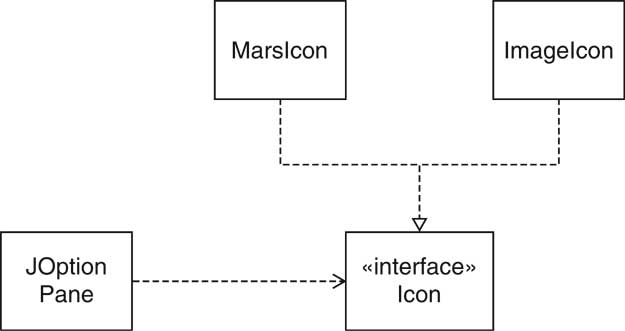

The Icon Interface Type and Implementing Classes

Polymorphism

• public static void showMessageDialog(...Icon anIcon)
• showMessageDialog shows

  • icon
  • message
  • OK button
• showMessageDialog must compute size of dialog
• width = icon width + message size + blank size
• How do we know the icon width?


  int width = anIcon.getIconWidth();


Polymorphism

• showMessageDialog doesn't know which icon is passed

  • ImageIcon?
  • MarsIcon?
  • . . .?

• The actual type of anIcon is not Icon
• There are no objects of type Icon
• anIcon belongs to a class that implements Icon
• That class defines a getIconWidth method

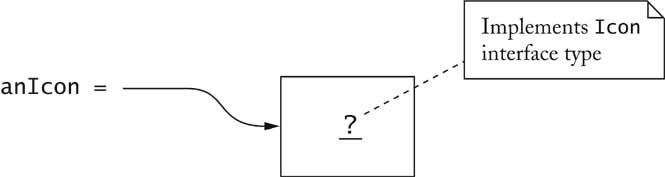

A Variable of Interface Type

Polymorphism

• Which getIconWidth method is called?
• Could be

  • MarsIcon.getIconWidth
  • ImageIcon.getIconWidth
  • . . .

• Depends on object to which anIcon reference points, e.g.


  showMessageDialog(..., new MarsIcon(50))


• Polymorphism: Select different methods according to actual object type

Benefits of Polymorphism

• Loose coupling
• • showMessageDialog decoupled from ImageIcon
  • Doesn't need to know about image processing

• Extensibility
• • Client can supply new icon types

Drawing Shapes

• paintIcon method receives graphics context of type Graphics
• Actually a Graphics2D object in modern Java versions


  public void paintIcon(Component c, Graphics g, int x, int y)
  {
     Graphics2D g2 = (Graphics2D)g;
     . . .
  }


• Can draw any object that implements Shape interface


  Shape s = . . .;
  g2.draw(s);


Drawing Rectangles and Ellipses

• Rectangle2D.Double constructed with
• • top left corner
  • width
  • height
• g2.draw(new Rectangle2D.Double(x, y, width, height));


• For Ellipse2D.Double, specify bounding box

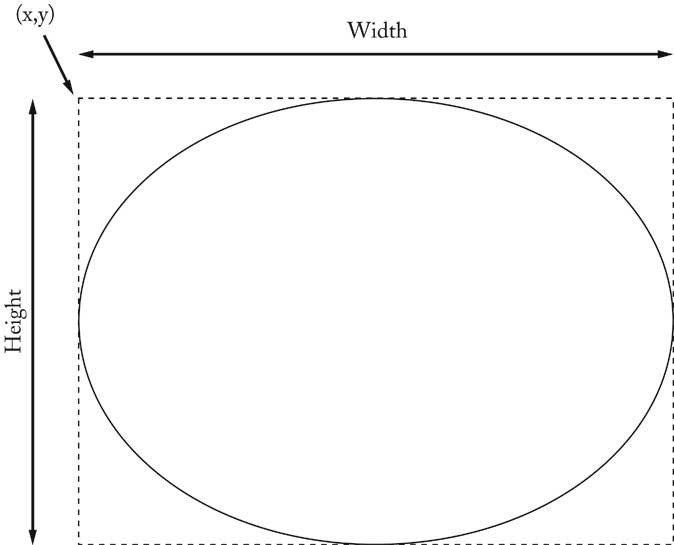

Drawing Ellipses

Drawing Line Segments

• Point2D.Double is a point in the plane
• Line2D.Double joins to points


  Point2D.Double start = new Point2D.Double(x1, y1);
  Point2D.Double end = new Point2D.Double(x2, y2);
  Shape segment = new Line2D.Double(start, end);
  g2.draw(segment);

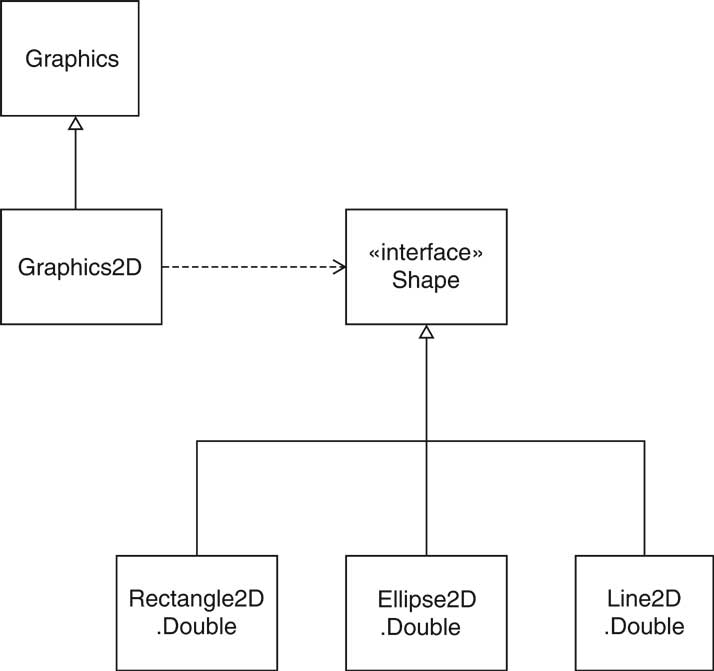

Relationship Between Shape Classes

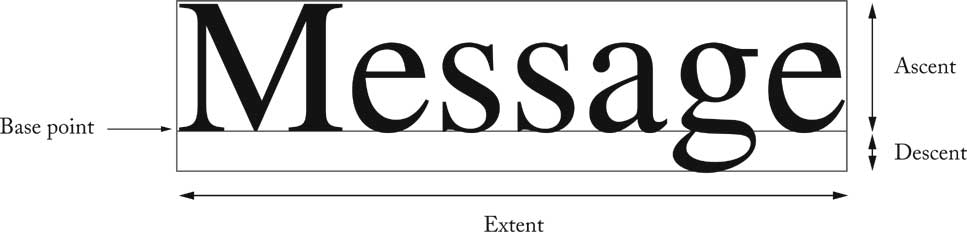

Drawing Text

• g2.drawString(text, x, y);
• x, y are base point coordinates

Filling Shapes

• Fill interior of shape


  g2.fill(shape);


• Set color for fills or strokes:
  g2.setColor(Color.red);

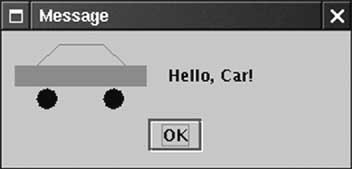

• Program that draws car
  Ch4/icon3/CarIcon.java

The Comparable Interface Type

• Collections has static sort method:


  ArrayList a = . . .
  Collections.sort(a);


• Objects in list must implement the Comparable interface type


  public interface Comparable
  {
     int compareTo(Object other);
  }


• object1.compareTo(object2) returns
• • Negative number if object1 less than object2
  • 0 if objects identical
  • Positive number if object1 greater than object2

The Comparable Interface Type

• sort method compares and rearranges elements if (object1.compareTo(object2) > 0) . . .
• String class implements Comparable interface type: lexicographic (dictionary) order
• Country class: compare countries by area Ch4/sort1/Country.java Ch4/sort1/CountrySortTest.java

The Comparator interface type

• How can we sort countries by name?
• Can't implement Comparable twice!
• Comparator interface type gives added flexibility


  public interface Comparator
  {
     int compare(Object object1, Object object2);
  }


• Pass comparator object to sort:


  Collections.sort(list, comp);


The Comparator interface type

• Ch4/sort2/CountryComparatorByName.java
  Ch4/sort2/ComparatorTest.java
• Comparator object is a function object
• This particular comparator object has no state
• State can be useful, e.g. flag to sort in ascending or descending order

Anonymous Classes

• No need to name objects that are used only once


  Collections.sort(countries,
     new CountryComparatorByName());


• No need to name classes that are used only once


  Comparator comp = new
     Comparator()
     {
        public int compare(Object obj1, Object obj2)
        {
           Country country1 = (Country)obj1;
           Country country2 = (Country)obj2;
           return country1.getName().compareTo(country2.getName());
        }
     };


Anonymous Classes

• anonymous new expression:
• • defines anonymous class that implements Comparator
  • defines compare method of that class
  • constructs one object of that class
• Cryptic syntax for very useful feature

Anonymous Classes

• Commonly used in factory methods:


  public static Comparator comparatorByName() {
    return new Comparator() {
        public int compare(Object o1, Object o2) { . . . }
      };
   }


• Collections.sort(a, Country.comparatorByName());
• Neat arrangement if multiple comparators make sense
  (by name, by area, ...)


Frames

• Frame window has decorations
• • title bar
  • close box
  • provided by windowing system

• JFrame frame = new JFrame();
  frame.pack();
  frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
  frame.show();


Adding Components

• Construct components


  JButton helloButton = new JButton("Say Hello");


• Set content pane layout


  Container contentPane = frame.getContentPane();
  container.setLayout(new FlowLayout());


• Add components to content pane


  contentPane.add(helloButton);


• Ch4/frame/FrameTest.java

User Interface Actions

• Previous program's buttons don't have any effect
• Add listener object(s) to button
• Belong to class implementing ActionListener interface type

  public interface ActionListener
  {
     int actionPerformed(ActionEvent event);
  }


• Listeners are notified when button is clicked

User Interface Actions

• Add action code into actionPerformed method

• Gloss over routine code


helloButton.addActionListener(
  new ActionListener()
  {
    public void actionPerformed(ActionEvent event)
      {
        textField.setText("Hello, World");
      }
  } );

• When button is clicked, text field is set


Accessing Variables from Enclosing Scope

• Remarkable: Inner class can access variables from enclosing scope
  e.g. textField
• Can access enclosing instance fields, local variables

• Local variables must be marked final
  final JTextField textField = ...;


User Interface Actions

• Constructor attaches listener:


  helloButton.addActionListener(listener);


• Button remembers all listeners
• When button clicked, button notifies listeners


  listener.actionPerformed(event);


• Listener sets text of text field


  textField.setText("Hello, World!");


• Ch4/action1/ActionTest.java

Constructing Related Actions

• Write helper method that constructs objects
• Pass variable information as parameters
• Declare parameters final

public static ActionListener createGreetingButtonListener(
   final String message)
{
   return new
      ActionListener()
      {
         public void actionPerformed(ActionEvent event)
         {
            textField.setText(message);
         }
      };
}

Timers

• Supply delay, action listener


  ActionListener listener = ...;
  final int DELAY = 1000; // 1000 millisec = 1 sec
  Timer t = new Timer(DELAY, listener);
  t.start();


• Action listener called when delay elapsed
• Ch4/timer/TimerTest.java


Defining a New Interface Type

• Use timer to move car shapes
• Draw car with CarShape
• Two responsibilities:
• • Draw shape
  • Move shape
• Define new interface type MoveableShape

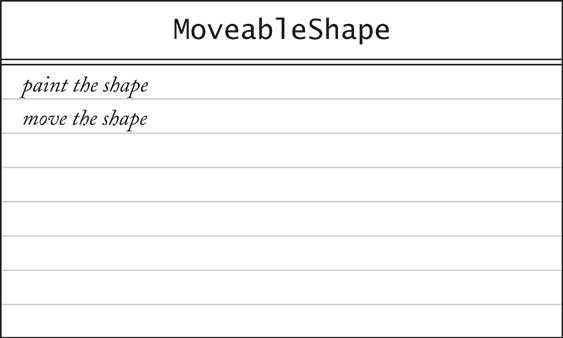

CRC Card for the MoveableShape Interface Type

Defining a New Interface Type

• Name the methods to conform to standard library

• public interface MoveableShape
  {
    void draw(Graphics2D g2);
    void translate(int dx, int dy);
  }


•
  public class CarShape implements MoveableShape
  {
    public void translate(int dx, int dy)
    { x += dx; y += dy; }
    . . .
  }

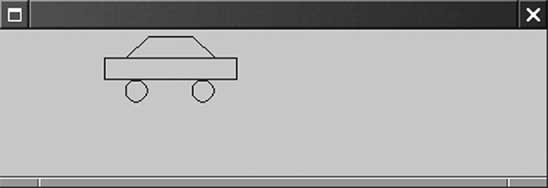

Implementing the Animation

• Label contains icon that draws shape

• Timer action moves shape, calls repaint on label
• Label needs Icon, we have MoveableShape
• Supply ShapeIcon adapter class
• ShapeIcon.paintIcon calls MoveableShape.draw

Implementing the Animation

• Ch4/animation/MoveableShape.java
• Ch4/animation/ShapeIcon.java
• Ch4/animation/AnimationTest.java
• Ch4/animation/CarShape.java

Implementing the Animation
