COMP 303 - Lecture Notes for Week 6 - Inheritance and Abstract Classes

• Slides edited from, Object-Oriented Design Patterns, by Cay S. Horstmann
• Original slides available from: http://www.horstmann.com/design_and_patterns.html
• Modifications made by Laurie Hendren, McGill University
• Topics this week:
  • Inheritance and Abstract Classes
  • Automatic Formatting of Java code ( jalopy )
  • Obfuscating Java code ( yguard )

Chapter Topics

• The Concept of Inheritance

• Graphics Programming with Inheritance

• Abstract Classes
• The TEMPLATE METHOD Pattern
• Protected Interfaces

• The Hierarchy of Swing Components

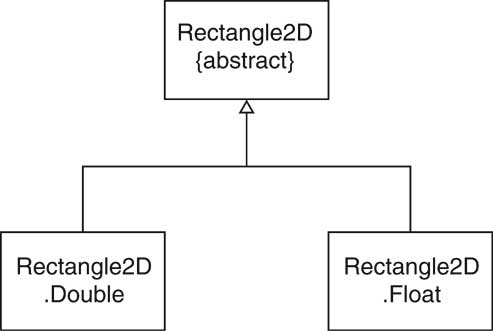

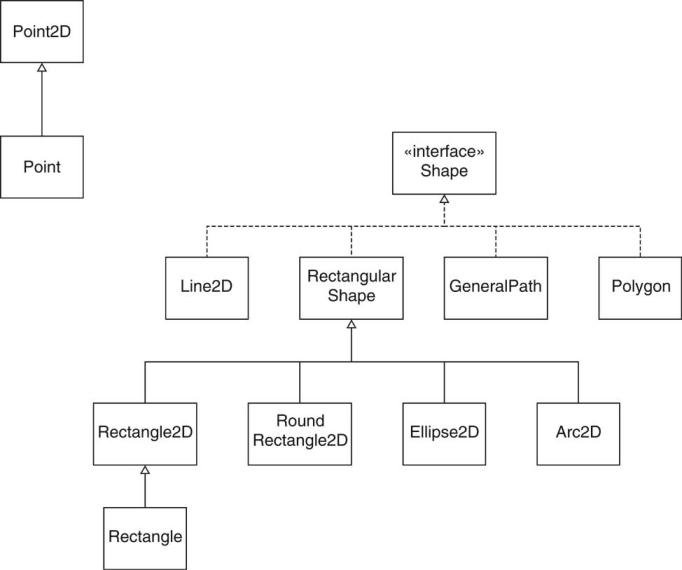

• The Hierarchy of Standard Geometrical Shapes

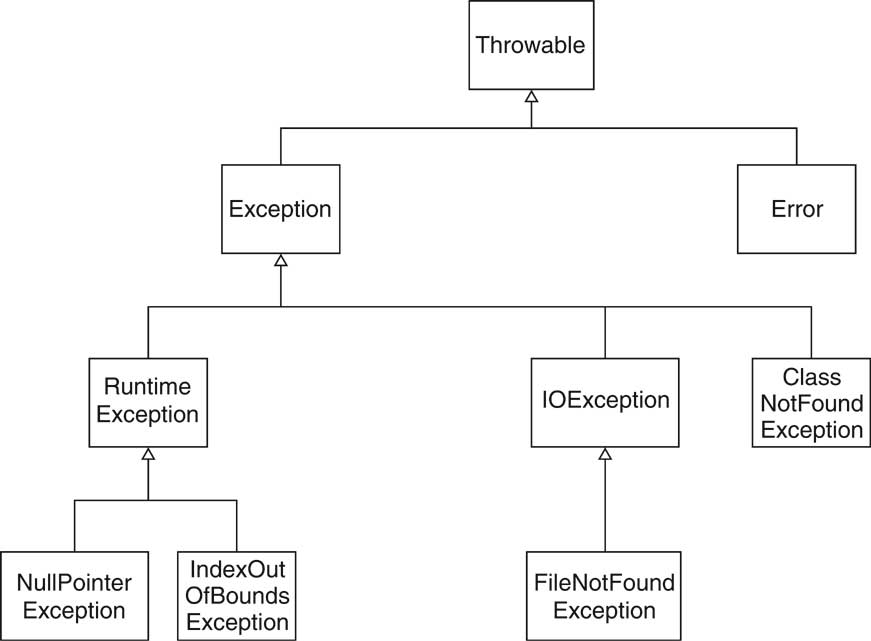

• The Hierarchy of Exception Classes
• When Not to Use Inheritance


Modeling Specialization

• Start with simple Employee class
  public class Employee
  {
     public Employee(String aName)
       { name = aName; }
     public void setSalary(double aSalary)
       { salary = aSalary; }
     public String getName() { return name; }
     public double getSalary() { return salary; }

     private String name;
     private double salary;
  }
• Manager is a subclass

Modeling Specialization

• Manager class adds new method: setBonus
• Manager class overrides existing method: getSalary
• Adds salary and bonus

• public class Manager extends Employee
  {
     public Manager(String aName) { ... }
     public void setBonus(double aBonus)
       { bonus = aBonus; } // new method
     public double getSalary()
       { ... } // overrides Employee method

     private double bonus; // new field
  }

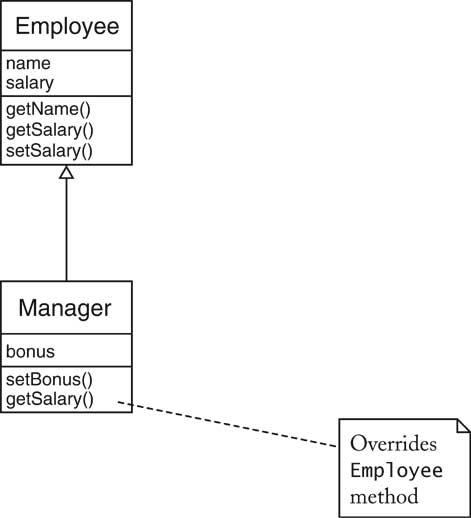

Modeling Specialization

Manager Methods and Fields

• methods setSalary, getname (inherited from Employee)
• method getSalary (overridden in Manager)
• method setBonus (defined in Manager)
• fields name and salary (defined in Employee)
• field bonus (defined in Manager)


The Super/Sub Terminology

• Why is Manager a subclass?

• Isn't a Manager superior?
• Doesn't a Manager object have more fields?
• The set of managers is a subset of the set of employees

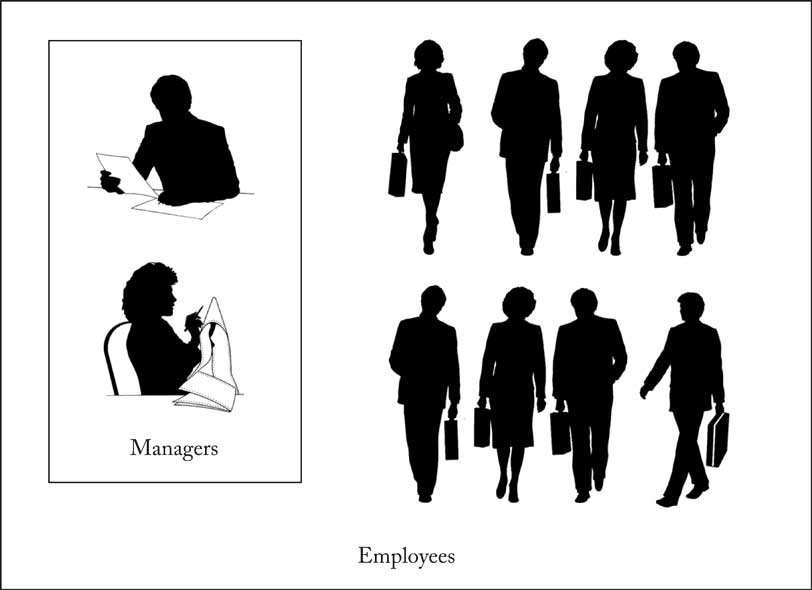

The Super/Sub Terminology

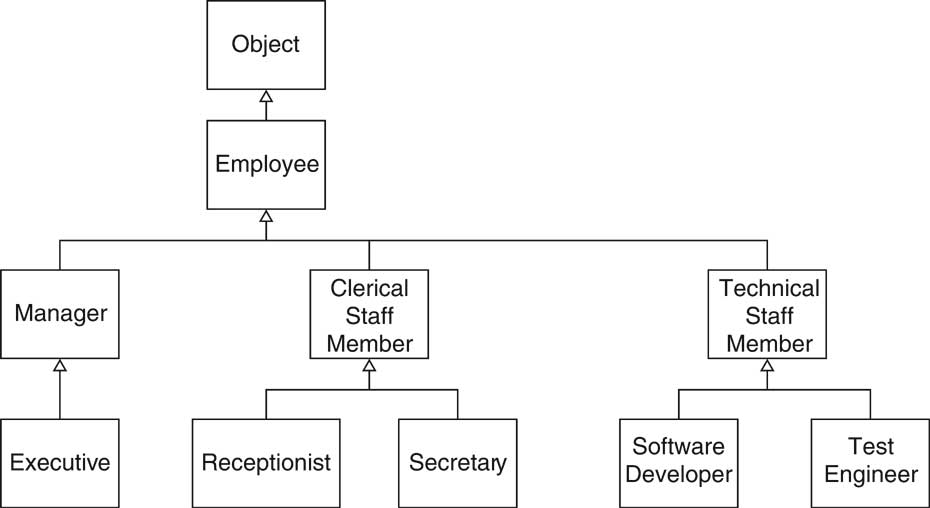

Inheritance Hierarchies

• Real world: Hierarchies describe general/specific relationships
• • General concept at root of tree
  • More specific concepts are children
• Programming: Inheritance hierarchy
• • General superclass at root of tree
  • More specific subclasses are children


Inheritance Hierarchies

The Substitution Principle

• Formulated by Barbara Liskov
• You can use a subclass object whenever a superclass object is expected
• Example:
  Employee e;
  ...
  System.out.println("salary=" + e.getSalary());
• Can set e to Manager reference
• Polymorphism: Correct getSalary method is invoked

Invoking Superclass Methods

• Can't access private fields of superclass


  public class Manager extends Employee
  {
    public double getSalary()
    {
       return salary + bonus;
          // ERROR - salary is a
          // private field of Employee
    }
    ...
  }


• Be careful when calling superclass method

    public double getSalary()
    {
      return getSalary() + bonus;
        // ERROR - need to call super.getSalary() or
        //           else this is a recursive call
    }


Invoking Superclass Methods

• Use super keyword
     public double getSalary()
     {
        return super.getSalary() + bonus;
     }
• super is not a reference
• super turns off polymorphic call mechanism


Invoking Superclass Constructors

• Use super keyword in subclass constructor:
  public Manager(String aName)
  {
     super(aName);
      // calls superclass constructor
     bonus = 0;
  }

• Call to super must be first statement in subclass constructor
• If subclass constructor doesn't call super, superclass must have constructor without parameters

Preconditions

• Precondition of redefined method at most as strong

• public class Employee
  {
     /**
        Sets the employee salary to a given value.
        @param aSalary the new salary
        @precondition aSalary > 0
     */
     public void setSalary(double aSalary) { ... }
  }


• Can we redefine Manager.setSalary with precondition
  salary > 100000?
• No--Could be defeated:


  Manager m = new Manager();
  Employee e = m;
  e.setSalary(50000);


Postconditions, Visibility, Exceptions

• Postcondition of redefined method at least as strong
• Example: Employee.setSalary promises not to decrease salary
• Then Manager.setSalary must fulfill postcondition

• Redefined method cannot be more private.
  (Common error: omit public when redefining)
• Redefined method cannot throw more checked exceptions

Graphic Programming with Inheritance

• Chapter 4: Create drawings by by implementing Icon interface type
• Now: Form subclass of JPanel
  public class MyPanel extends JPanel
  {
     public void paintComponent(Graphics g)
     {
        drawing instructions go here
     }
     ...
  }
• Advantage: Inherit behavior from JPanel
• Example: Can attach mouse listener to JPanel

Overriding paintComponent

• Draw a car:
  public class MyPanel extends JPanel
  {
     public void paintComponent(Graphics g)
     {
        Graphics2D g2 = (Graphics2D)g;
        car.draw(g2);
     }
     ...
  }

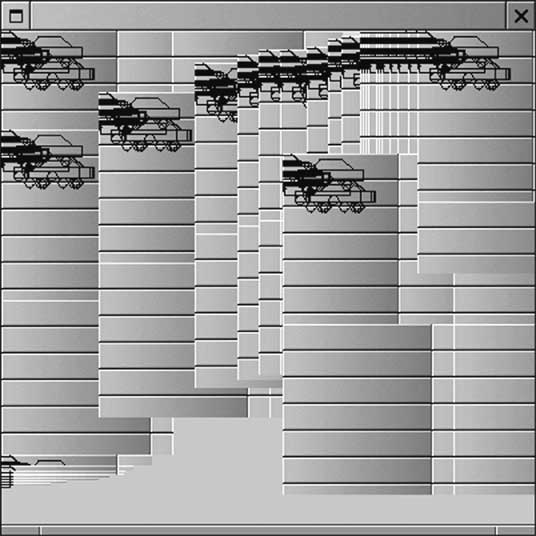

• Problem: Screen is corrupted when moving frame
• Remedy: call super.paintComponent(g)


Overriding paintComponent

Mouse Listeners

• Attach mouse listener to component
• Can listen to mouse events (clicks) or mouse motion events


  public interface MouseListener
  {
     void mouseClicked(MouseEvent event);
     void mousePressed(MouseEvent event);
     void mouseReleased(MouseEvent event);
     void mouseEntered(MouseEvent event);
     void mouseExited(MouseEvent event);
  }

  public interface MouseMotionListener
  {
     void mouseMoved(MouseEvent event);
     void mouseDragged(MouseEvent event);
  }


Mouse Adapters

• What if you just want to listen to mousePressed?
• Extend MouseAdapter


  public class MouseAdapter implements MouseListener
  {
     public void mouseClicked(MouseEvent event) {}
     public void mousePressed(MouseEvent event) {}
     public void mouseReleased(MouseEvent event) {}
     public void mouseEntered(MouseEvent event) {}
     public void mouseExited(MouseEvent event) {}
  }


• Component constructor adds listener:


  addMouseListener(new
     MouseAdapter()
     {
        public void mousePressed(MouseEvent event)
        {
           mouse action goes here
        }
     });


Car Mover Program

• Use the mouse to drag a car shape

• Car panel has mouse + mouse motion listeners

• mousePressed remembers point of mouse press
• mouseDragged translates car shape
• Ch6/car/CarPanel.java
• Ch6/car/CarMover.java
• Ch6/car/CarShape.java

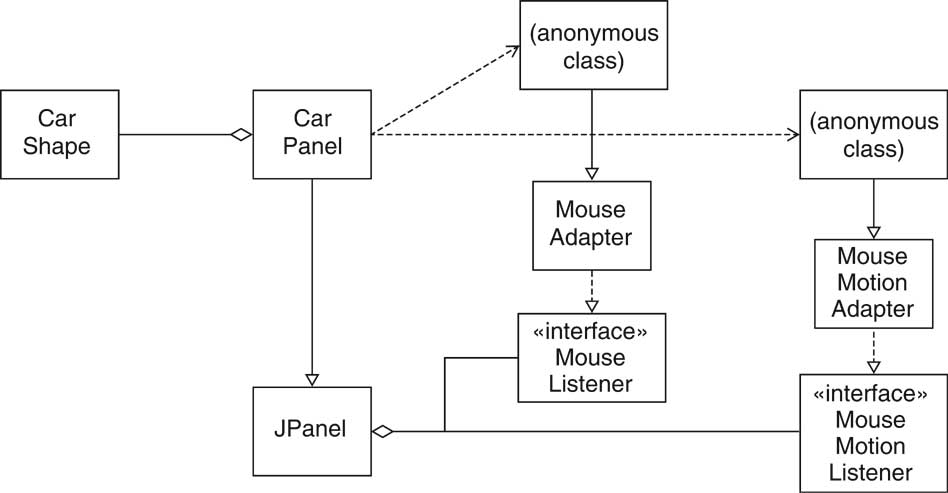

Car Mover Program

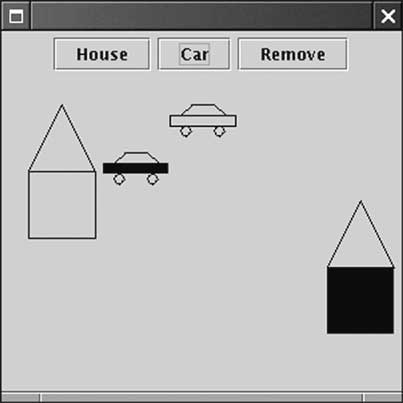

Scene Editor

• Draws various shapes
• User can add, delete, move shapes
• User selects shape with mouse
• Selected shape is highlighted (filled in)

Scene Editor

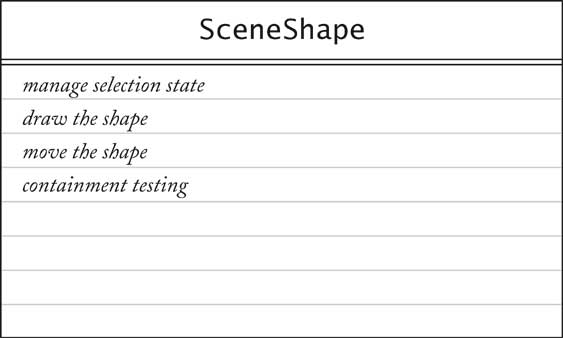

The SceneShape Interface Type

• keep track of selection state

• draw plain or selected shape

• move shape

• hit testing: is a point (e.g. mouse position) inside?

The SceneShape Interface Type

The SceneShape Interface Type

CarShape and HouseShape Classes

public class CarShape implements SceneShape
{
   ...
   public void setSelected(boolean b) { selected = b; }
   public boolean isSelected() { return selected; }
   private boolean selected;
}

public class HouseShape implements SceneShape
{
   ...
   public void setSelected(boolean b) { selected = b; }
   public boolean isSelected() { return selected; }
   private boolean selected;
}

Abstract Classes

• Factor out common behavior
  (setSelected, isSelected)
• Subclasses inherit common behavior

• Some methods still undefined
  (draw, drawSelection, translate, contains)

public class SelectableShape implements Item
{
   public void setSelected(boolean b) { selected = b; }
   public boolean isSelected() { return selected; }
   private boolean selected;
}

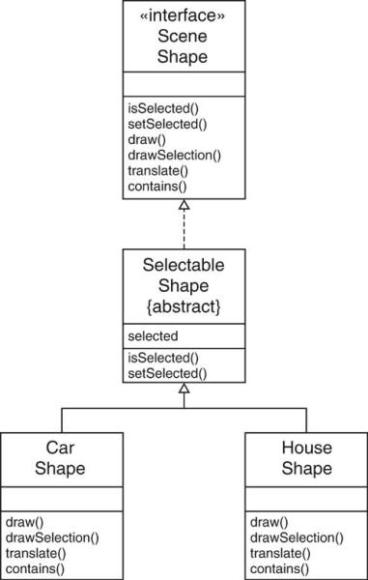

Abstract Classes

Abstract Classes

• SelectableShape doesn't define all SceneShape methods
• It's abstract
• public abstract class SelectableShape implements SceneShape
• HouseShape and CarShape are concrete
• Can't instantiate abstract class:


  SelectableShape s = new SelectableShape(); // NO


• Ok to have variables of abstract class type:


  SelectableShape s = new HouseShape(); // OK


Abstract Classes and Interface Types

• Abstract classes can have fields
• Interface types can only have constants (public static final)
• Abstract classes can define methods
• Interface types can only declare methods
• A class can implement any number of interface types
• In Java, a class can extend only one other class

Scene Editor

• Mouse listener selects/unselects item
• Mouse motion listener drags item
• Remove button removes selected items

• Ch6/scene1/ScenePanel.java
• Ch6/scene1/SceneEditor.java
• Ch6/scene1/HouseShape.java

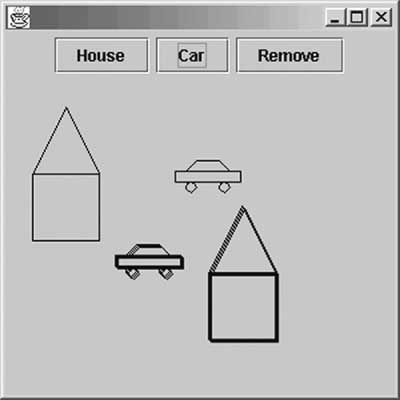

Uniform Highlighting Technique

• Old approach: each shape draws its selection state
• Inconsistent

• Better approach: shift, draw, shift, draw, restore to original position

• Define in SelectableShape


  public void drawSelection(Graphics2D g2)
    {
      translate(1, 1);
      draw(g2);
      translate(1, 1);
      draw(g2);
      translate(-2, -2);
    }


Uniform Highlighting Technique

Template Method

• drawSelection calls draw
• Must declare draw in SelectableShape
• No implementation at that level!

• Declare as abstract method
  public abstract void draw(Graphics2D g2)

• Defined in CarShape, HouseShape
• drawSelection method calls draw, translate
• drawSelection doesn't know which methods--polymorphism
• drawSelection is a template method
• Ch6/scene2/SelectableShape.java
• Ch6/scene2/HouseShape.java

TEMPLATE METHOD Pattern

Context

1. An algorithm is applicable for multiple types.

2. The algorithm can be broken down into primitive operations. The primitive operations can be different for each type

3. The order of the primitive operations doesn't depend on the type


TEMPLATE METHOD Pattern

Solution

1. Define a superclass that has a method for the algorithm and abstract methods for the primitive operations.
2. Implement the algorithm to call the primitive operations in the appropriate order.
3. Do not define the primitive operations in the superclass, or define them to have appropriate default behavior.
4. Each subclass defines the primitive operations but not the algorithm.

TEMPLATE METHOD Pattern

TEMPLATE METHOD Pattern

Compound Shapes

• GeneralPath: sequence of shapes


  GeneralPath path = new GeneralPath();
  path.append(new Rectangle(...), false);
  path.append(new Triangle(...), false);
  g2.draw(path);


• Advantage: Containment test is free
  path.contains(aPoint);
• Ch6/scene3/CompoundShape.java
• Ch6/scene3/HouseShape.java

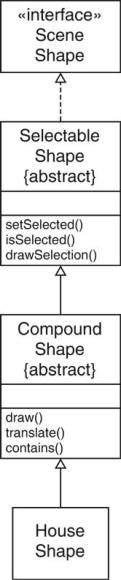

Compound Shapes

Access to Superclass Features

• Why does the HouseShape constructor call add?


  public HouseShape()
  {
     add(new Rectangle(...));
     add(new Triangle(...));
  }


• Why not just
  path.append(new Rectangle(...));
• HouseShape inherits path field

• HouseShape can't access path
• path is private to superclass

Protected Access

• Make CompoundShape.add method protected
• Protects HouseShape: other classes can't add graffiti
• Protected features can be accessed by subclass methods...
• ...and by methods in the same package
• Bad idea to make fields protected
  protected GeneralPath path; // DON'T

• Ok to make methods protected
  protected void add(Shape s) // GOOD
• Protected interface separate from public interface

Hierarchy of Swing Components

• Base of hierarchy: Component
• Huge number of common methods:


  int getWidth()
  int getHeight()
  Dimension getPreferredSize()
  void setBackground(Color c)
  . . .


• Most important subclass: Container

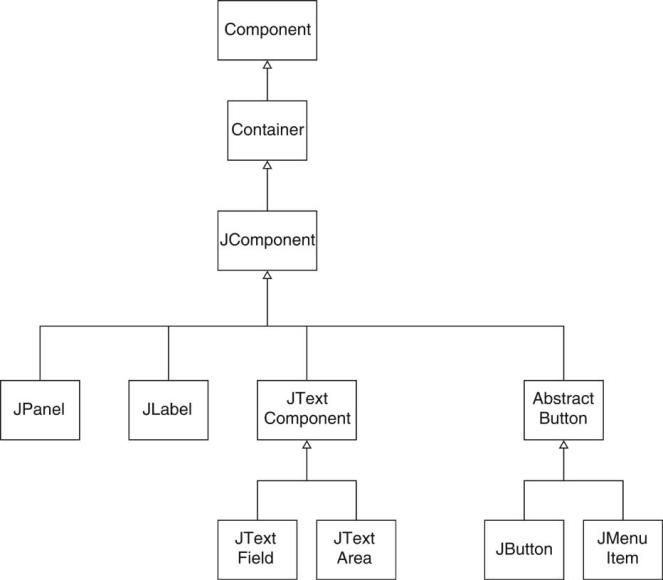

Hierarchy of Swing Components

Hierarchy of Swing Components

• History: First came AWT, Abstract Window Toolkit
• Used native components
• Subtle platform inconsistencies

• Write once, run anywhere ->
  Write once, debug everywhere

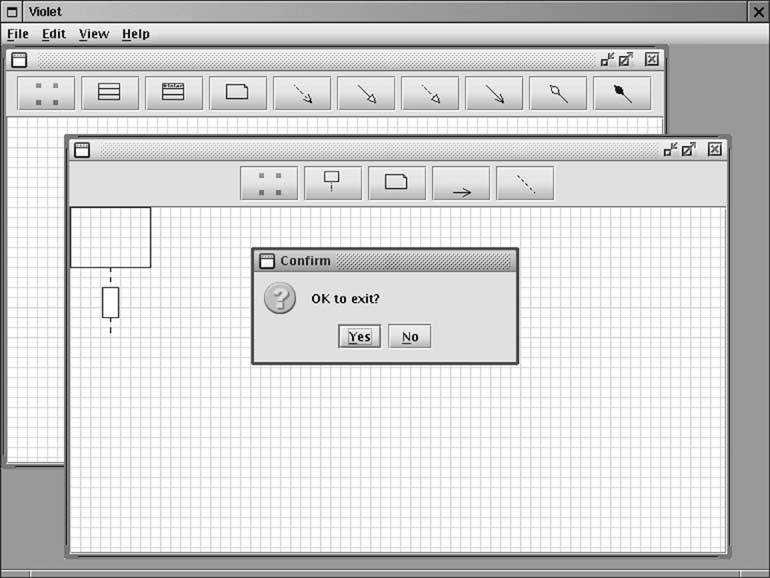

• Swing paints components onto blank windows
• Supports multiple look and feel implementations

Look and Feel

Hierarchy of Swing Components

• Base of Swing components: JComponent
• Subclass of Container
• Some Swing components are containers
• Java has no multiple inheritance
• JLabel, JPanel, ... are subclasses of JComponent
• Intermediate classes AbstractButton, JTextComponent

Hierarchy of Geometrical Shapes

• First version of Java: few shapes, integer coordinates


  Point
  Rectangle
  Polygon


• Java 2: sophisticated shapes, floating-point coordinates


  Point2D
  Rectangle2D
  RoundRectangle2D
  Line2D
  Ellipse2D
  Arc2D
  QuadCurve2D
  CubicCurve2D
  GeneralPath
  Area


• All but Point2D implement Shape interface type


Hierarchy of Geometrical Shapes

Rectangular Shapes

• Subclasses of RectangularShape:


  Rectangle2D
  RoundRectangle2D
  Ellipse2D
  Arc2D


• RectangularShape has useful methods


  getCenterX/getCenterY
  getMinX/getMinY
  getMaxX/getMaxY
  getWidth/getHeight
  setFrameFromCenter/setFrameFromDiagonal


Float/Double Classes

• Each class has two subclasses, e.g.


  Rectangle2D.Double
  Rectangle2D.Float


• Are also inner classes!
  (Just to avoid even longer class names)

• Implementations have double/float fields
• Most methods have double parameters/return values

Float/Double Classes

Float/Double Classes

public class Rectangle2D
{
   public static class Float extends Rectangle2D
   {
      public double getX() { return x; }
      public double getY() { return y; }
      public double getWidth() { return width; }
      public double getHeight() { return height;}
      public void setRect(float x, float y, float w, float h)
      {
         this.x = x; this.y = y;
         this.width = w; this.height = h;
      }
      public void setRect(double x, double y,
         double w, double h)
      {
         this.x = (float)x; this.y = (float)y;
         this.width = (float)w; this.height = (float)h;
      }
      ...
      public float x;
      public float y;
      public float width;
      public float height;
   }
   . . .

Float/Double Classes

   . . .
   public static class Double extends Rectangle2D
      public double getX() { return x; }
      public double getY() { return y; }
      public double getWidth() { return width; }
      public double getHeight() { return height;}
      public void setRect(double x, double y,
         double w, double h)
      {
         this.x = x; this.y = y;
         this.width = w; this.height = h;
      }
      ...
      public double x;
      public double y;
      public double width;
      public double height;
   }
   ...
}

Float/Double Classes

• Rectangle2D class has no instance variables
• Template Method Pattern at work:


  public boolean contains(double x, double y)
  {
     double x0 = getX();
     double y0 = getY();
     return x >= x0 && y >= y0 &&
        x < x0 + getWidth() &&
        y < y0 + getHeight();
  }


• No need to use inner class after construction
  Rectangle2D rect
  = new Rectangle2D.Double(5, 10, 20, 30);


TEMPLATE METHOD Pattern

Hierarchy of Exception Classes

• Base of hierarchy: Throwable
• Two subclasses: Error, Exception
• Subclasses of Error: fatal
  (out of memory, assertion failure)
• Subclasses of Exception:
• • Lots of checked exceptions
    (I/O, class not found)
  • RuntimeException--its subclasses are unchecked
    (null pointer, index out of bounds)

Hierarchy of Exception Classes

Catching Exceptions

• Can have multiple catch clauses:


  try
  {
     code that may throw exceptions
  }
  catch (ExceptionType1 exception1)
  {
     handler for ExceptionType1
  }
  catch (ExceptionType2 exception1)
  {
     handler for ExceptionType2
  }
  . . .


• Can catch by superclass:
  catch (IOException exception)
  catches FileNotFoundException

Defining Exception Classes

• Decide exception should be checked
• Subclass Exception or RuntimeException
• Provide two constructors


  public class IllegalFormatException extends Exception
  {
     public IllegalFormatException() {}
     public IllegalFormatException(String reason)
     { super(reason); }
  }


• Throw exception when needed:
  throw new IllegalFormatException("number expected");


When Not to Use Inheritance

• From a tutorial for a C++ compiler:


public class Point
{
   public Point(int anX, int aY) { ... }
   public void translate(int dx, int dy) { ... }
   private int x;
   private int y;
}

public class Circle extends Point // DON'T
{
   public Circle(Point center, int radius) { ... }
   public void draw(Graphics g) { ... }
   private int radius;
}

When Not to Use Inheritance

• Huh? A circle isn't a point.
• By accident, inherited translate works for circles
• Same tutorial makes Rectangle a subclass of Point:


  public class Rectangle extends Point // DON'T
  {
     public Rectangle(Point corner1, Point corner2) { ... }
     public void draw(Graphics g) { ... }
     public void translate(int dx, int dy) { ... }
     private Point other;
  }


When Not to Use Inheritance

• That's even weirder:


  public void translate(double dx, double dy)
  {
     super.translate(dx, dy);
     other.translate(dx, dy);
  }


• Why did they do that?
• Wanted to avoid abstract class Shape
• Remedy: Use aggregation.
• Circle, Rectangle classes have points

When Not to Use Inheritance

• Java standard library:


  public class Stack extends Vector // DON'T
  {
     Object pop() { ... }
     void push(Object item) { ... }
     ...
  }


• Bad idea: Inherit all Vector methods
• Can insert/remove in the middle of the stack
• Remedy: Use aggregation


  public class Stack
  {
     ...
     private Vector elements;
  }
