How to run and Java programs
1. Making sure prerequisites are installed
Your machine or the host you are logged in to must have these tools
correctly installed:
- Java SDK, version 1.5 at least
- Flex [download]
[manual]
- Bison [download] [manual]
2. Setting up your environment
Some of the scripts in this course depend on certain
environment variables being set.
JAVADIR
This variable must point to the location of the directory
containing your desired installation of the Java SDK.
JOOSDIR
This variable tells scripts where to find the JOOS binaries and
libraries.
Example:
setenv JOOSDIR $HOME/cs520/public_html/joos
if you are using tcsh , or the following to your
.bash_profile :
export JOOSDIR=$HOME/cs520/public_html/joos
if you are using bash .
CLASSPATH
This variable tells javac and java
where to find required libraries. We would like to add the
current directory . to our CLASSPATH as well the
jar file containing the JOOS libraries,
jooslib.jar :
setenv CLASSPATH .:$JOOSDIR/jooslib.jar:$CLASSPATH
or
export CLASSPATH=.:$JOOSDIR/jooslib.jar:$CLASSPATH
for tcsh and bash respectively.
PATH
Now you can add the JAVADIR and JOOSDIR binaries to your path using:
setenv PATH $JAVADIR/bin:$JOOSDIR/bin:$PATH
or
export PATH=$JAVADIR/bin:$JOOSDIR/bin:$PATH
for tcsh and bash respectively. Note
that since $PATH appears at the end of the string,
these directories will be searched for binaries before any of
the directories found in the old value of PATH .
Note: as you will be modifying the A- JOOS compiler, you may
find it convenient to place the directory containing your
modifications on your path as well.
3. Using the various tools
This section describes the use of the various tools needed for
the JOOS project. It assumes that the environment variables in
the previous section have been set properly.
joosa+
This is the A+ JOOS compiler. It is actually a wrapper script
around binaries for several different architectures that
looks at the value of $HOSTTYPE to determine
what to execute.
Task: compile JOOS programs using the A+ compiler into a similar
collection of Jasmin files:
$ joosa+ f1.java f2.java ... fn.java f1.joos f2.joos ... fn.joos
Note that JOOS programs are really collections of regular
.java files (f1.java through
fn.java ) along with special externs that
provide access to the Java class libraries (f1.joos
through fn.joos ). Many externs are already present
in $JOOSDIR/joos/extern and get pulled in
automatically by the script. This means that quite possibly you
will not need to specify any of your own. The
.java extension for JOOS classes is used so that
JOOS programs can also be compiled easily with
javac .
joos
This is the A- JOOS compiler. It converts Java source code
.java files to Jasmin assembler .j
files that contain human-readable representations of Java
bytecode.
The A- source code is in $JOOSDIR/a- , but you will
be copying it to your own group repository for the course
deliverables. You should build the binary from the source
yourself by typing make . You should then add the
source directory to your PATH so that joos is found
by the joosa- script described later. Initially, it
is fine to add $JOOSDIR/a- to your PATH; just
remember that you can override it by
prepending additional directories in the future.
joosa-
This is a wrapper around the A- JOOS compiler. It expects to
find a binary called joos on your PATH, and for the
JOOSDIR environment variable to be set.
Task: Compile a JOOS program using the
joosa- script:
$ joos f1.java f2.java ... fn.java f1.joos f2.joos ... fn.joos
Note that here the .joos extern files are ones that
you have written; the script already pulls in all of the externs
from the $JOOSDIR/extern directory.
jasmin
This is the Jasmin assembler. It is actually a wrapper script
that calls java to execute jasmin.Main .
Task: convert the Jasmin .j files generated
by some JOOS compiler into real Java .class files:
$ jasmin f1.j f2.j ... fn.j
joosc
This is a convenience wrapper script that calls
joosa- and then calls jasmin for a JOOS
program.
Task: compile a JOOS program directly to Java bytecode:
$ joosc f1.java f2.java ... fn.java f1.joos f2.joos ... fn.joos
Note that this will also leave the intermediate .j
files in the current directory.
javac
This is the official Java compiler. You can confirm that it is
version 1.5 by typing java -version .
Task: compile JOOS programs, which are also Java
programs, into a similar collection of class files using the
official JDK:
$ javac f1.java f2.java ... fn.java
If your CLASSPATH is set properly this will work, because
javac will search the JOOS libraries as necessary.
Note that all files must end with .java .
dejava
This is the D-Java .class file disassembler. It is
actually a wrapper script around binaries for several different
architectures that looks at the value of $HOSTTYPE
to determine what to execute.
Task: disassemble a collection of Java
.class files that constitute a JOOS/Java program
into a collection of Jasmin assembler .j files:
$ dejava f1.class f2.class ... fn.class
java -verify
This is the Java virtual machine running with the class file
verifier turned on. The verifier makes sure that the bytecode
obeys the rules of the Java
Virtual Machine Specification.
Task: execute and verify .class files
containing Java bytecode:
$ java -verify Main
where Main is the main class of the application. Note that you
must not use an extension here. If your CLASSPATH is set
properly this will work, because java will search
the JOOS libraries as necessary.

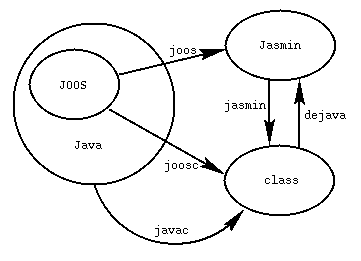

4. Understanding the tool relationships
|
